Balcony Weather Station

A DIY weather station project on my balcony. The data is sent to Home Assistant to be used as part of home automation projects.

The source code started as CircuitPython following many of the patterns I learned in creating an aquarium controller project. I have since switch to using C for better performance and control.

Capabilities

• ✅ Send data to Home Assistant via MQTT
• ✅ read tempature
• ✅ read humidity
• ✅ read atmospheric pressure
• ✅ read partical matter PM1, PM2.5, and PM10
• read noise levels
• read wind speed
• read wind direction
• read rain fall
• read light level

Pics

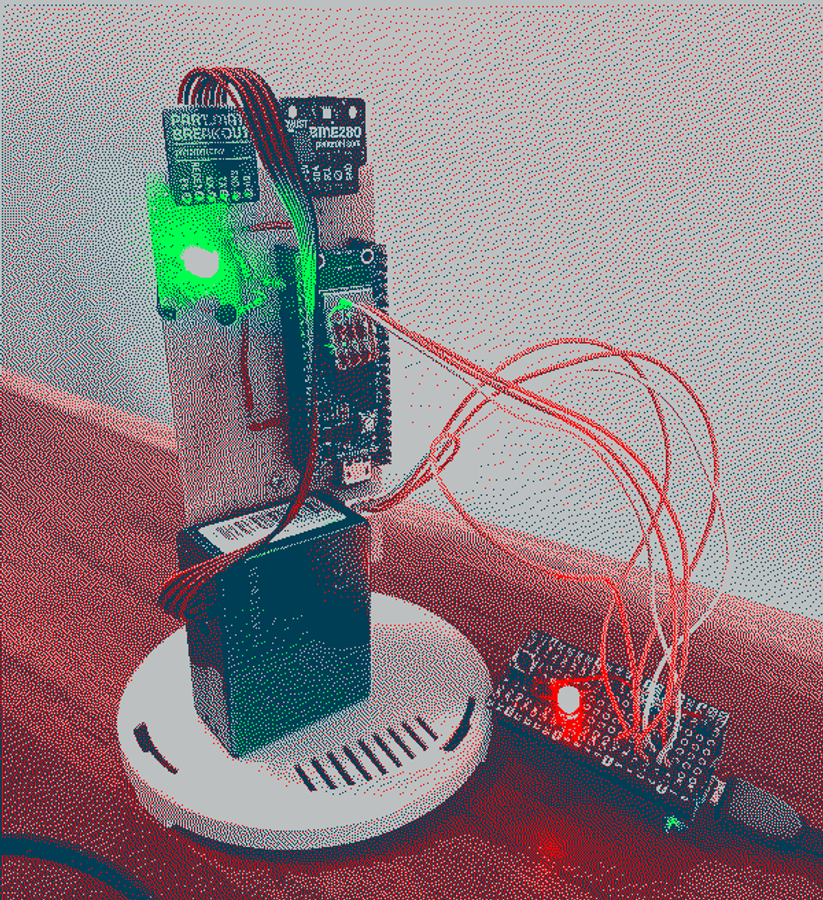

Node 1 WIP:

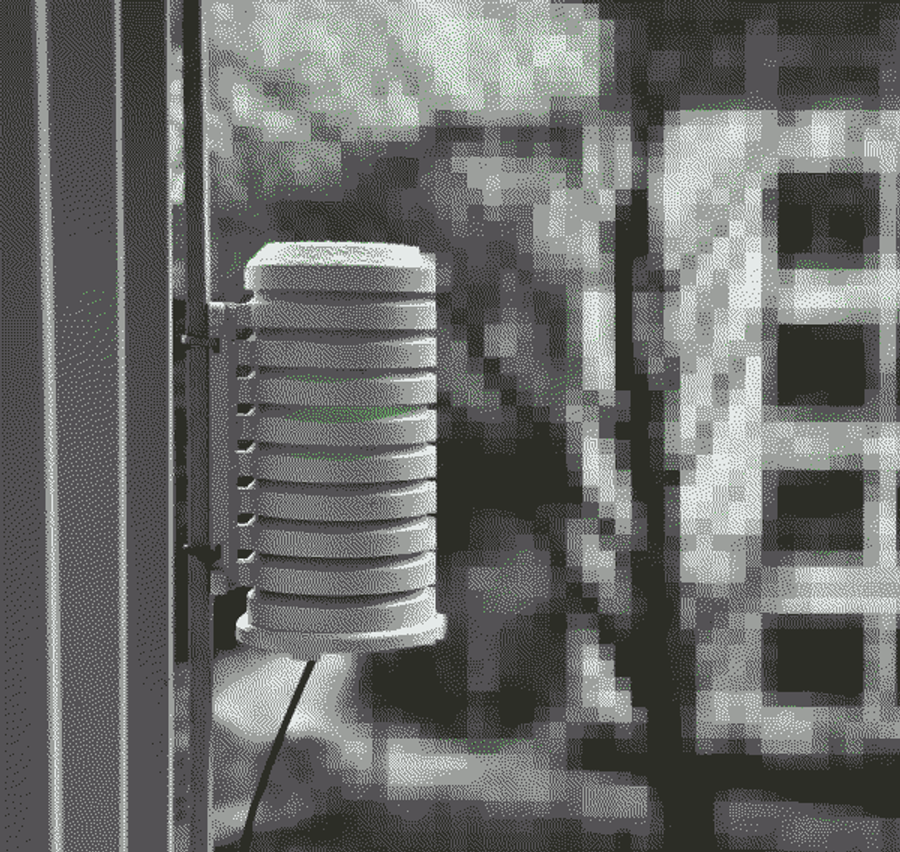

Node 1 Installed:

Hardware

Arch

Node1

Sensors:

• BME280
  • reads tempature, humidity, and atmospheric pressure
• PMS5003
  • reads partical matter PM1, PM2.5, and PM10

MC: Raspberry Pi Pico W

Weatherproof Enclosure: weatherproof-cover-for-outdoor-sensors

Note: I would not recommend buying from pimoroni from EU as shipping tax is huge!

Helpful links

• pico mqtt Example
• pico pinout
• home assistant mqtt guide
• home assistant device classes

Dev

Env Setup

From build folder run:

$ cmake -DPICO_BOARD=pico_w ..

This creates the needed makefiles

Build

This turns the test.c file in the root dir into .elf and .uf2 files:

$ make node1

Flash

Once you have the .uf2 file you can transfer it to the pico by putting the pico in bootsel mode (hold button and plug it into pc) or you can flash the .elf file to the pico using openocd:

openocd -f interface/cmsis-dap.cfg -f target/rp2040.cfg -c "adapter speed 5000" -c "program node1.elf verify reset exit"

note: after flashing with openocd the program will be paused. To unpause connect and run "continue"

Shell

You screen

$ fd tty.usb /dev
/dev/tty.usbmodem102
$ screen /dev/tty.usbmodem102 115200

Exit shell Ctrl+A Ctrl+|

Open debug connection

$ openocd -f interface/cmsis-dap.cfg -f target/rp2040.cfg -c "adapter speed 5000"

then in another window

$ lldb ./test.elf

Once in lldb you can do a bunch of stuff, see https://web.navan.dev/posts/2024-08-08-openocd-macos-lldb.html.

(lldb) platform select remote-gdb-server
...
(lldb) process connect connect://localhost:3333

Set breakpoint:

(lldb) breakpoint set --hardware --name main
(lldb) continue # Continue execution
(lldb) step     # Step in
(lldb) next     # Step over
(lldb) finish   # Step out

Check vars:

(lldb) frame variable
(lldb) print variable_name

Restarting the program:

(lldb) process plugin packet monitor reset run

Home assistant debugging

Subscribe to a topic

$ TOPIC=zigbee2mqtt/0xa4c13848a46ea1cf; mosquitto_sub -h 192.168.1.11 -t $TOPIC  -u homeassistant -P xxx

Send message

Config example:

$ mosquitto_pub -h 192.168.1.11 -P xxxxxxxx \
-u homeassistant  -t homeassistant/device/bws/node1_001/config \
-f node1.json -r

Payload example:

$ mosquitto_pub -h 192.168.1.11 -P xxxxxxxx \
-u homeassistant  -t bws/node1/state \
-f node1_payload_example.json
